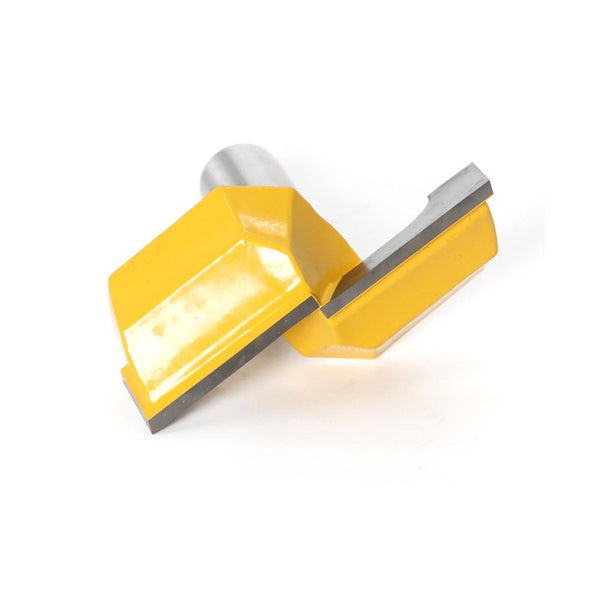

WoodyLock® Planer & Dado Router Bit - 1/2" Shank

Big Projects Need Big Bits!

Building a table, workbench or large shelves? Have a slab to flatten? Then we have the bit for you!

Create awesome large projects with our Dado and Planer Router Bit!

The BIG addition to the workshop!

It's Big! - With an impressive 2-1/4 inch cutting diameter this bit will ensure you remove what's not needed quickly

Saves You Time - The fewer passes you need to do with your flattening sled the quicker you can get it done

Save On Equipment - Workpiece too big, awkward or uncooperative to fit in the jointer or planer? Don't risk it and set up for this Dado and Planer Router Bit

Removes Old Surface Finishes - Giving old timber new love? Remove old paints, stains and varnishes with a skim

Durable - Heat resistant Teflon coating prevents the build up of sawdust, resin and pitch

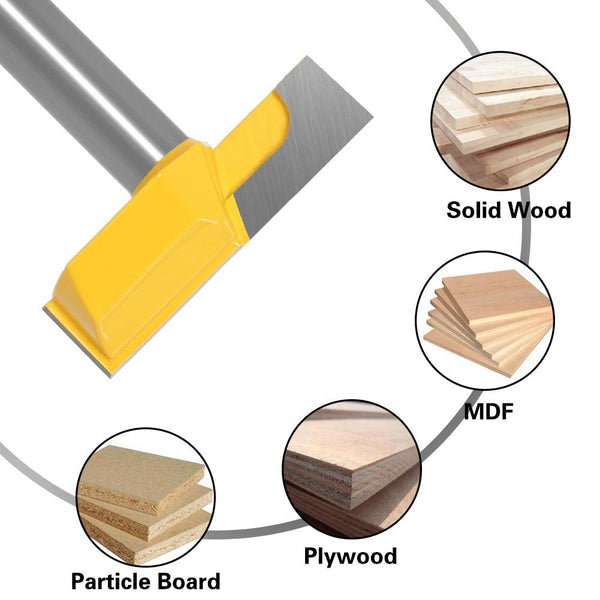

Versatile - Can be used on all types of timbers - Softwoods, Hardwoods, MDF, Plywood and Particle Board.

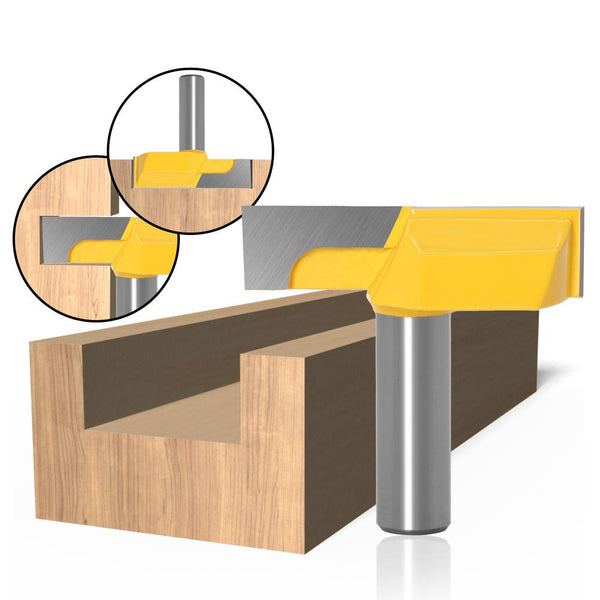

Wide Application - From flattening slabs to cutting large joints like tenons, rabbets and dados – the possibilities are yours to explore!

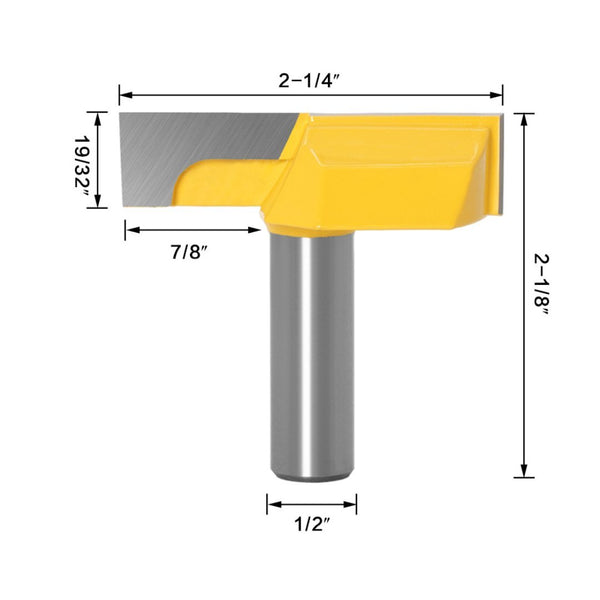

Specifications:

These bits must be used in a router table or planing or scarfing jigs.

Material - Body: Tungsten Cobalt Alloy
Material - Blades: C3 Micro-Grain Tungsten Carbide
Shank Diameter: 1/2 inch (12.7mm)
Cutting Edges: 2
Cutting Diameter: 2-1/4 inch (57mm)
Cutting Length: 19/32 inch (15mm)
Cutting Depth: 3/4 inch (19mm)
Overall Length of Tool: 2-1/8 inch (55mm)
Overall Width of Tool: 2-1/4 inch (57mm)

FAQ:

At what RPM should these bits be used?
-Depending on your router table, we recommend running at reduced speeds up to 12,000 RPM.
