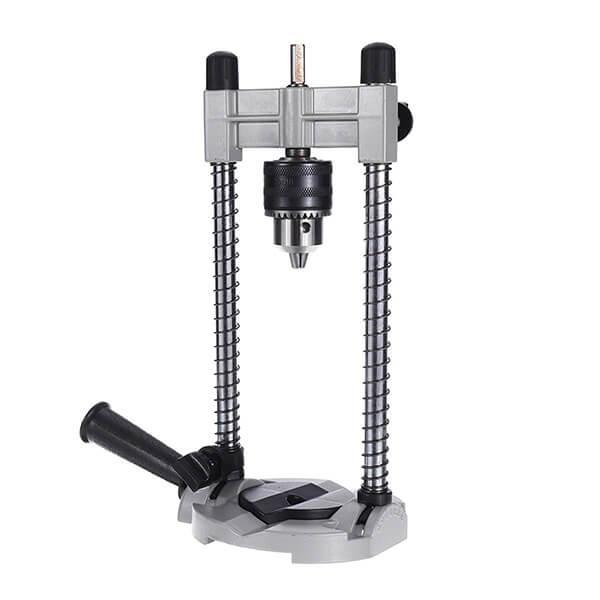

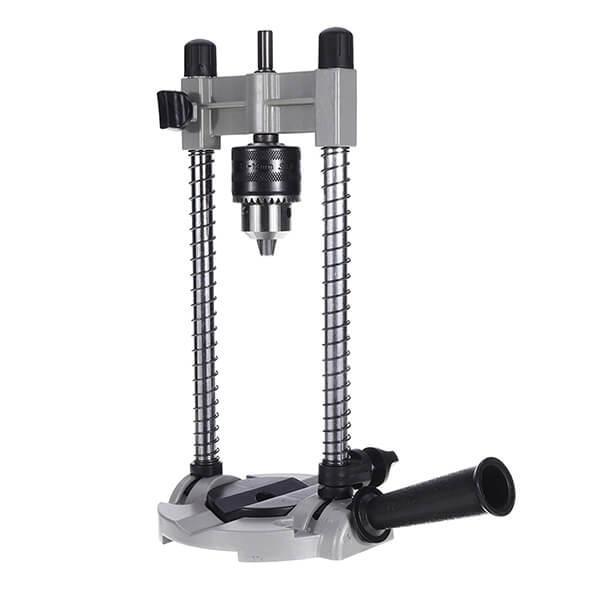

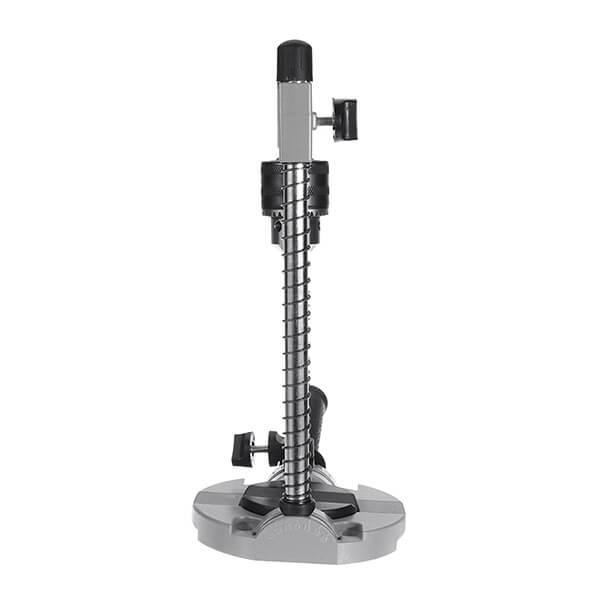

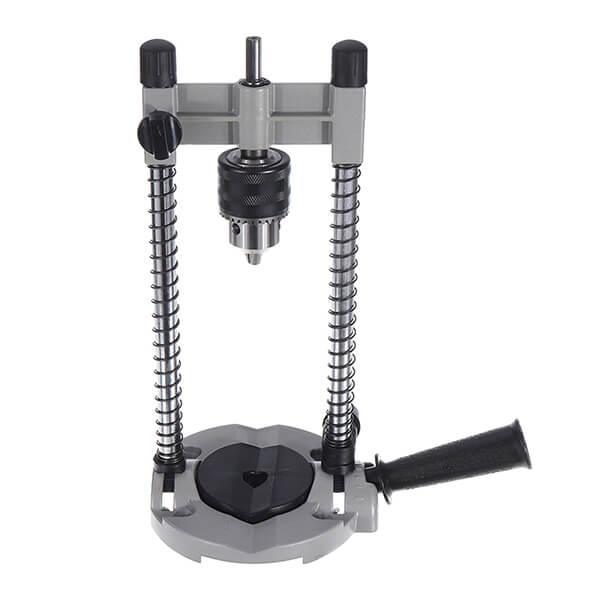

WoodyLock® Multi Angled Adjustable Drill Guide

WoodyLock® Multi Angled Adjustable Drill Guide

Regular price $74.99 USD
Regular price Sale price $74.99 USD
Sale Sold out
Free Worldwide Shipping

The Angled Adjustable Drill portable drill stand offers versatility for drilling straight, angled, or edge holes on various surfaces. Achieve precise and accurate holes, enhancing the success of DIY projects. Upgrade your drilling accuracy with ease using this drill guide jig alongside your standard hand drill.

Portable Drill Guide Jig, Multi-Angle Drill Guide with Chuck, Drill Press Stand, Adjustable Angle Drill Holder Guide, Stand Drill Guide Attachment for 1/4 In and 3/8 In Drills.

FEATURES :

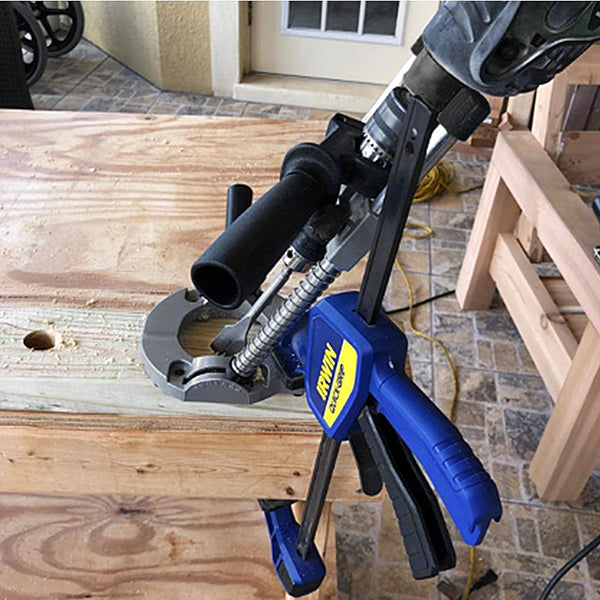

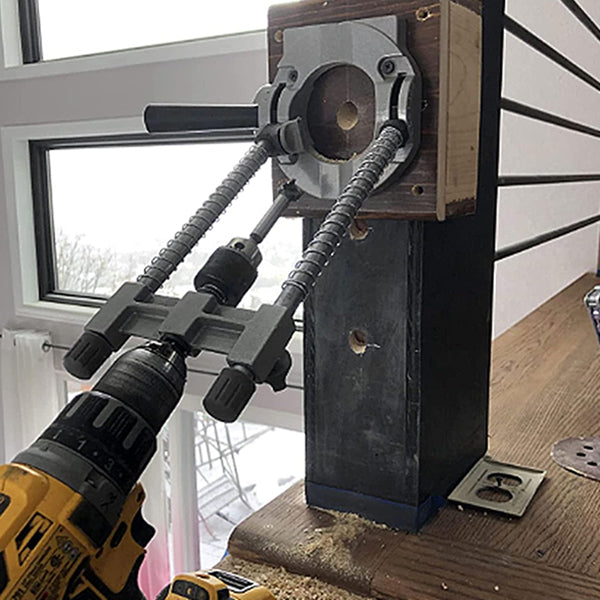

  • Ideal for straight or angled drilling, drilling on the edge of a board, or round stock

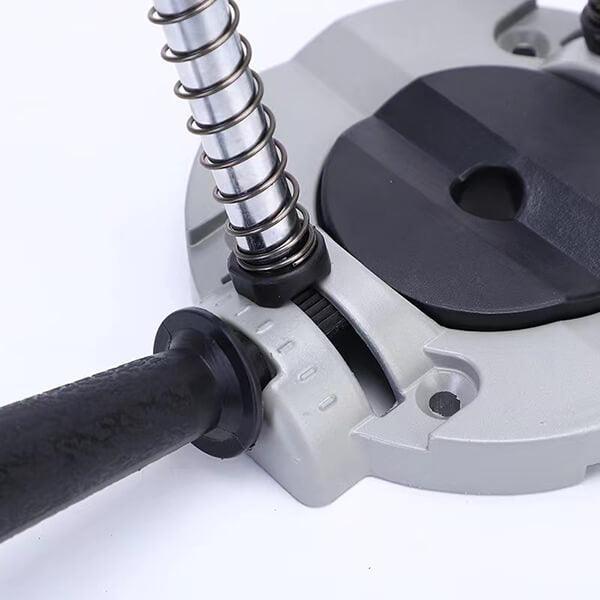

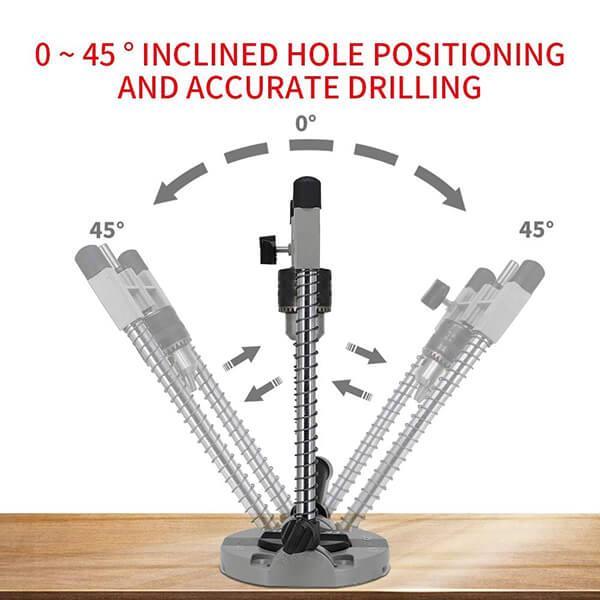

  • Angle cuts ranging from 45 degrees to 90 degrees, with a built-in angle readout in the all-metal base
  • Centering channels integrated into the base to accommodate drilling round stock up to 3 inches in diameter
  • Features adjustable depth stop and spring action control of the head
  • Compatible with all 3/8" and 1/2" power drills, including a 3/8" capacity chuck with key.

SPECIFICATION :

Material: Aluminum
Color: Gray
Size: 14x5x29cm/5.51x1.97x11.42 inch

Levoite™ Portable Multi Angled Adjustable Drill Guide Jig Attachment

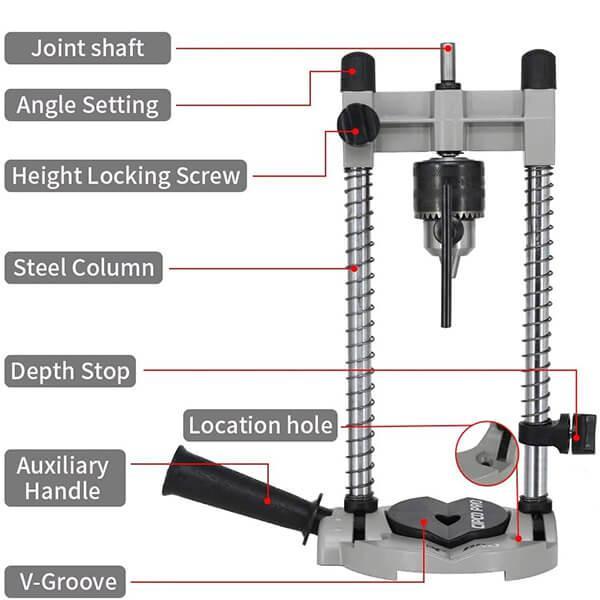

Installation Guide :

  1. First, pass the steel column (3) through 5 and fix it. Then, check whether the joint shaft (1) is defective.
  2. Next, install the fixing bolt on the base (10), then insert 3 into 10 and check whether it's tightly inserted.
  3. Then, install the Angle Adjuster (2) on top of the steel column (3) and tighten it.
  4. Repeat the second and third steps to install another 3(steel column).
  5. Install 9(V-Groove sleeve) on 10(Base) and press it firmly. Then install 6(Height locking screw) on 5 and tighten it.
  6. Finally, install 4(Auxiliary Handle) into 10(Base) , and then install 11(Drill) on 5, and the installation is completed.
  7. Tips: If it's difficult to install or there are issues during the process, some steps can be adjusted accordingly.
