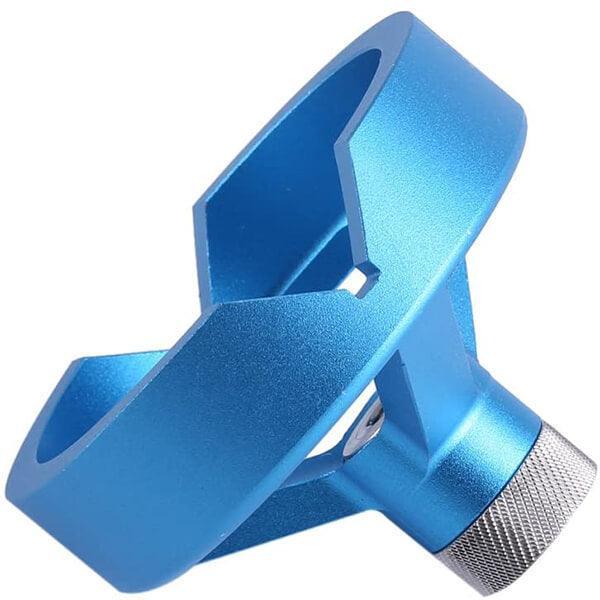

WoodyLock® 90 Degree Vertical Drill Guide

WoodyLock® 90 Degree Vertical Drill Guide

Regular price $42.99 USD
Regular price $79.99 USD Sale price $42.99 USD
Sale Sold out
Free Worldwide Shipping
Set
Drill Bushing

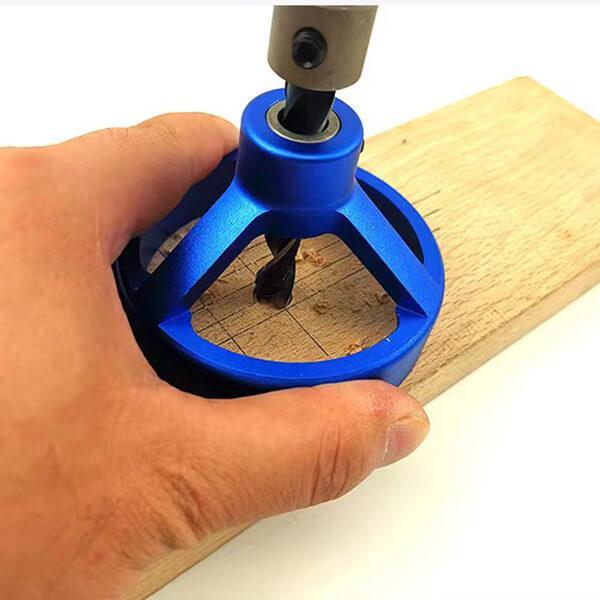

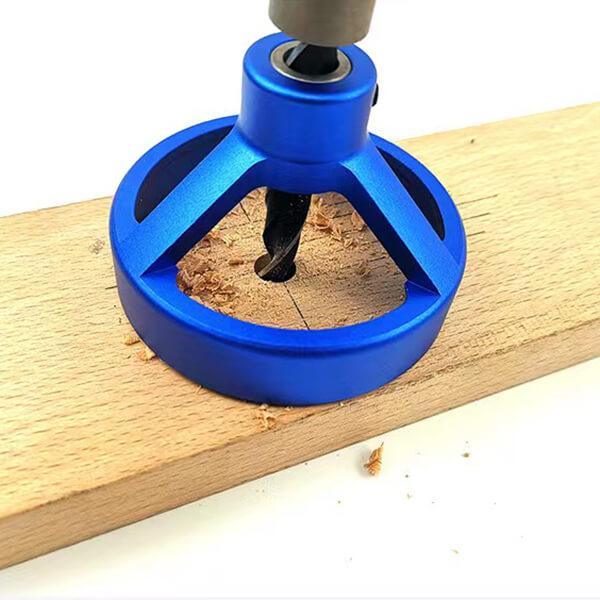

 Drill Guide can be used with a drill press or a hand drill to ensure perfectly aligned holes every time!

FEATURE:

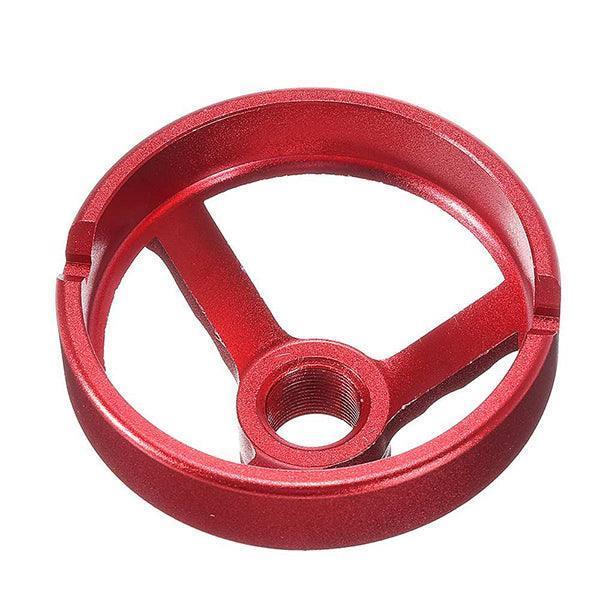

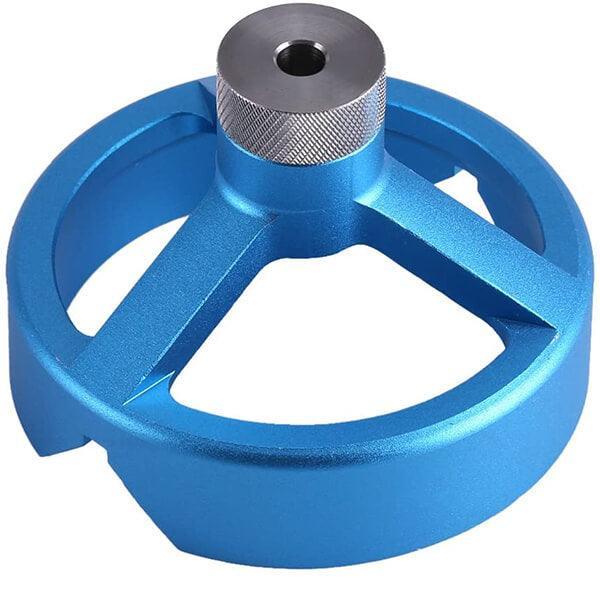

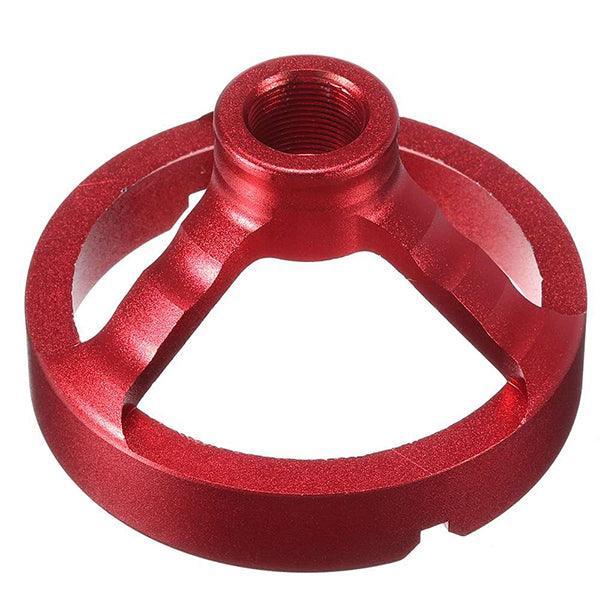

  1. Made of an aluminum alloy body and hard steel drill bushing, durable and accurate to use.
  2. For the fixation and centering while drilling and woodworking.

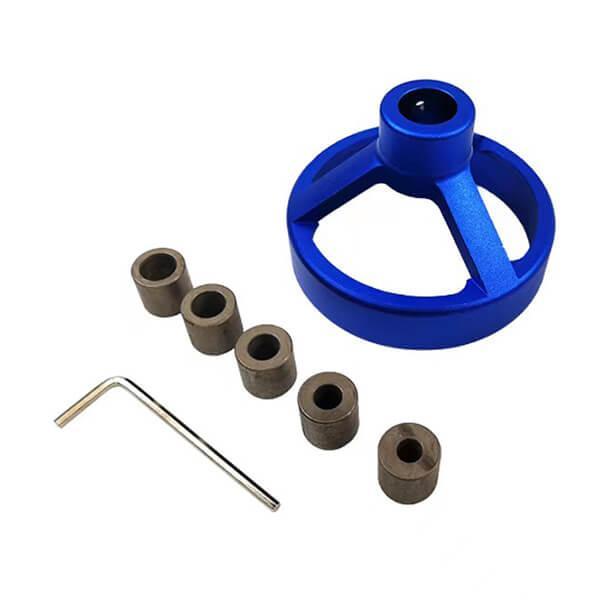

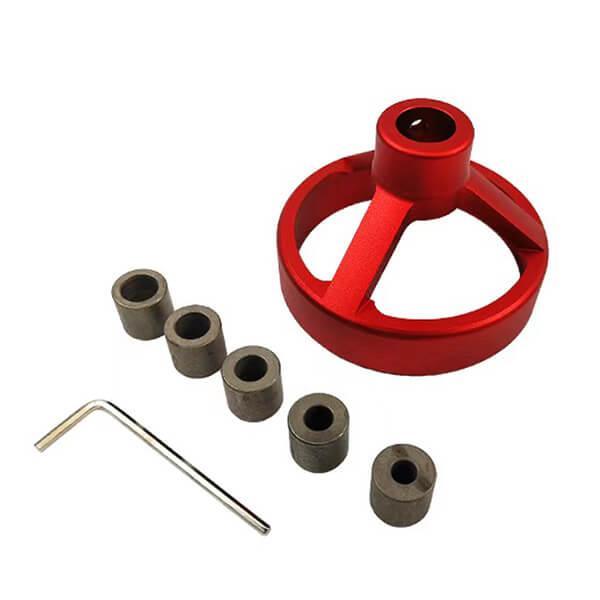

  3. Drill Guide Body + 5 Drill Bushings, The drill guide jig has 5 drill bushings and their diameters are 0.236 inch, 0.276 inch, 0.315 inch, 0.354 inch, 0.394 inch. It is rather easy to change the bushing thread into the drill guide jig.

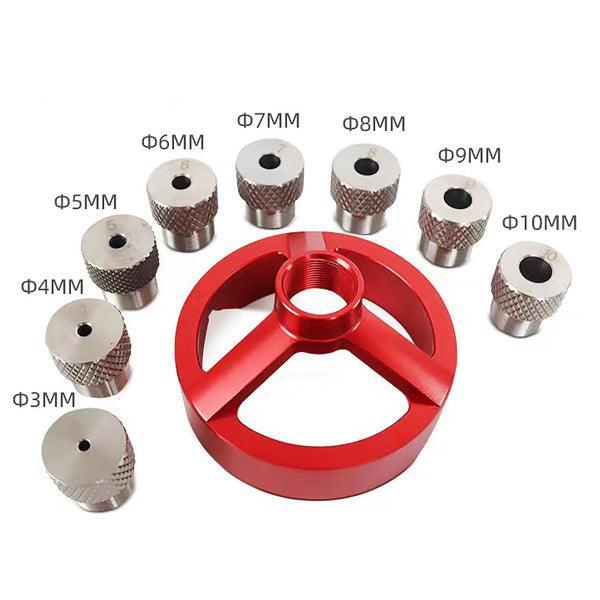

  4. Drill Guide Body +8 Drill Bushings, The drill guide jig has 8 drill bushings and their diameters are 0.118 inch, 0.157 inch, 0.197 inch, 0.236 inch, 0.276 inch, 0.315 inch, 0.354 inch, 0.394 inch. It is rather easy to change the bushing thread into the drill guide jig.

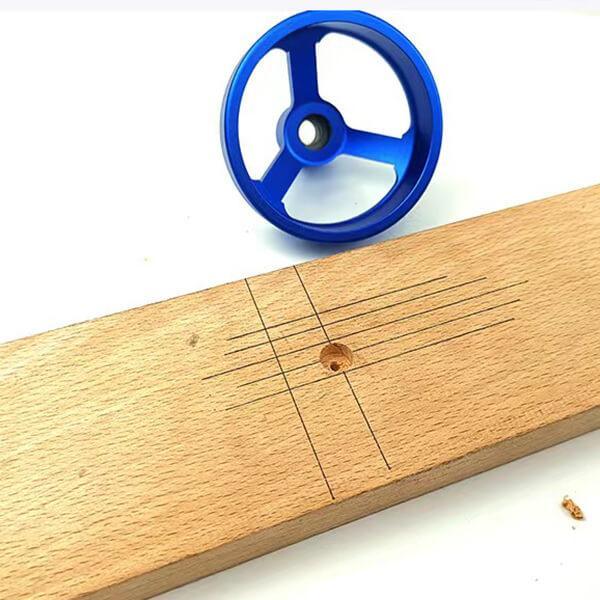

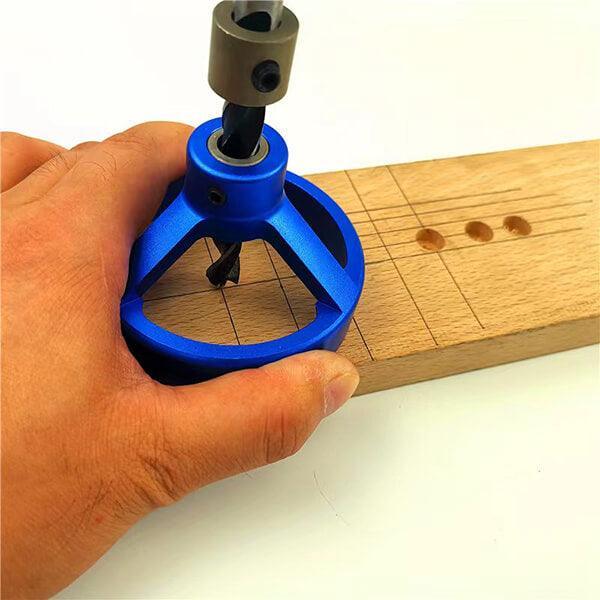

  5. Centerlines ensure accurate alignment when drilling into various surfaces. By holding the drill guide body, easy to get a vertical hole drilled without any deviation.

SPECIFICATION:

Main body Drill Guide Size: Approx. 3.1 x 2.2 inches (80 x 55mm ) Drill Bushing Size:

  • 0.236 inch (6mm),
  • 0.276 inch (7mm),
  • 0.315 inch (8mm),
  • 0.354 inch (9mm),
  • 0.394 inch (10mm)

and

  • 0.118 inch (3mm),
  • 0.157 inch (4mm),
  • 0.197 inch (5mm),
  • 0.236 inch (6mm),
  • 0.276 inch (7mm),
  • 0.315 inch (8mm),
  • 0.354 inch (9mm),
  • 0.394 inch (10mm).

drill jig for straight holes straight hole drill guide

drill jig for perpendicular holes
tool to keep drill bit straight
drill jig for straight holes tool to keep drill bit straight
jig for drilling straight holes in wood
drill jig for straight holes
drill guide for straight holes
drill jig for straight holes 90 degree drill guide
